Nombre del producto

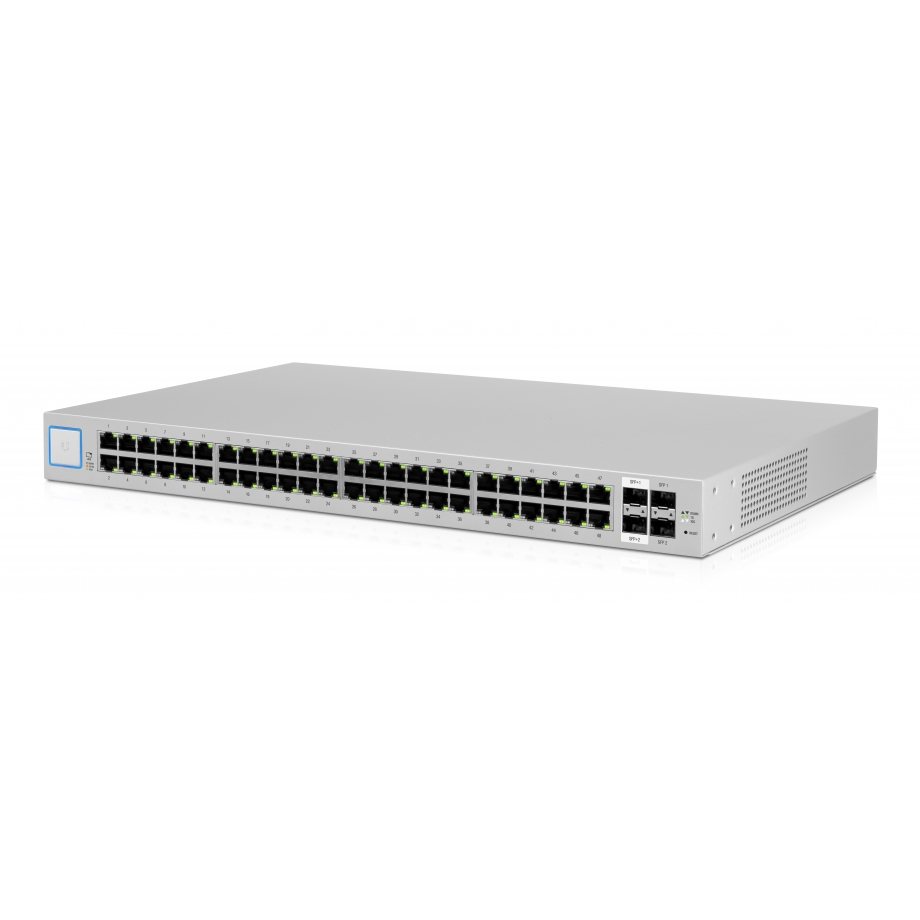

Switch Standard 48 (Gen1)
Garantía
?
24 meses
Número de pieza del fabricante
US-48
EAN
0810354024788
Switch Standard 48 (Gen1)
Este artículo ha sido descatalogado
Recomendamos utilizar el producto que se presenta a continuación
Alternativas disponibles
Descripción detallada
Comparar con artículos similares
| Ethernet Puertos | ||||||
| 48 x 1 Gbps | 16 x 1 Gbps | 24 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps | |
| Estándares de salida PoE | ||||||
| 16 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | |||
| SFP Puertos | ||||||
| 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | |
| Gestión | ||||||
| Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | |
| Max. consumo de energía | ||||||
| 56 W | 150 W | 25 W | 250 W | 500 W | 150 W | |
| Temperatura de funcionamiento | ||||||
| -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 45 °C | |
| Dimensiones | ||||||
| 443 x 43 x 286 mm | 443 x 43 x 221 mm | 443 x 43 x 221 mm | 485 x 43.7 x 285.4 mm | 485 x 43.7 x 374.6 mm | 235 x 43 x 204 mm | |
| Peso | ||||||
| 3.65 kg | 2.89 kg | 2.6 kg | 4.7 kg | 6.1 kg | 1.65 kg | |
| Método de montaje | ||||||
| Montaje en Rack | Montaje en Rack, Montaje en Pared | Montaje en Rack | Montaje en Rack | Montaje en Rack | Montaje en Pared, Mesa | |
| Ethernet Puertos | 48 x 1 Gbps | 16 x 1 Gbps | 24 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps |
| Estándares de salida PoE | 16 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | ||
| SFP Puertos | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP |
| Gestión | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Max. consumo de energía | 56 W | 150 W | 25 W | 250 W | 500 W | 150 W |
| Temperatura de funcionamiento | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 45 °C |
| Dimensiones | 443 x 43 x 286 mm | 443 x 43 x 221 mm | 443 x 43 x 221 mm | 485 x 43.7 x 285.4 mm | 485 x 43.7 x 374.6 mm | 235 x 43 x 204 mm |
| Peso | 3.65 kg | 2.89 kg | 2.6 kg | 4.7 kg | 6.1 kg | 1.65 kg |
| Método de montaje | Montaje en Rack | Montaje en Rack, Montaje en Pared | Montaje en Rack | Montaje en Rack | Montaje en Rack | Montaje en Pared, Mesa |
Especificación
Interfaz
Puertos RJ45
(48) 1 Gbps
Estándares de salida PoE
sin PoE
Puertos SFP
(2) 1G SFP, (2) 10G SFP+
Interfaz de comunicación
RJ45
Gestión
Ethernet
Energía
Método de potencia
Adaptador de CA/CC
Alimentación
Fuente de Alimentación interna, Adaptador de CA/CC Externo
Voltaje de entrada admitido
100 - 240 V AC
Max. consumo de energía
56 W
Conector de alimentación
Enchufe CC 2.1 x 5.5 mm
Parámetros Físicos
Color
Plata
Número de unidades de rack
1U
Dimensiones
443 x 43 x 286 mm
Peso
3.65 kg
Temperatura de funcionamiento
-5 °C a 40 °C
Medio ambiente
Interior
Método de montaje
Montaje en Rack
Factor de forma
Montado en rack 19"
