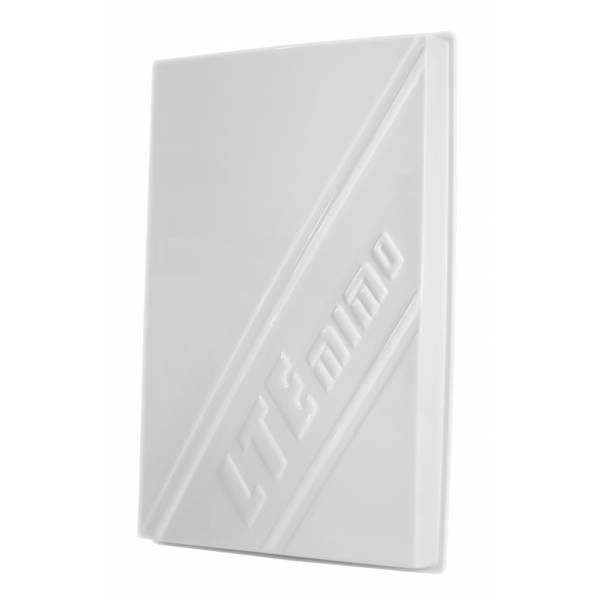

4G LTE 14dBi Antena de Panel Exterior 800-2600MHz

en stock
?
66.95
en stock
?
66.95

Número de pieza del fabricante

L14-8-26-NF2

Garantía

?
24 meses

EAN

0708747434460

Categoría

Especificación

Red Móvil

Generación de redes móviles

Antena

Diseño de Antena

Panel
Rango de Frecuencia y Ganancia de la Antena Móvil

0.800 - 0.900 (GHz) 10 (dBi), 1.800 - 2.600 (GHz) 14 (dBi)
Ganancia de Antena Móvil

10 dBi, 14 dBi
Ancho de haz

25 ° Vertical, 30 ° Horizontal
Polarización

Lineal Doble
VSWR

< 1.6
Impedancia

50 Ω
Potencia de Entrada Máxima

50 W

Conector

Conectores de RF

(2) N Female

Parámetros Físicos

Dimensiones

470 x 310 x 50 mm
Peso

1.5 kg
Temperatura de funcionamiento

-30 °C a 75 °C
Medio ambiente

Exterior
Método de montaje

Opiniones y valoraciones

4.5
/ 5
reseña de 2
reseña de 2
Viesturs Griņjus,10/27/2022
Antenna works good!
Verificada, recopilada por GETIC SIA
Seán Byrne,8/13/2023

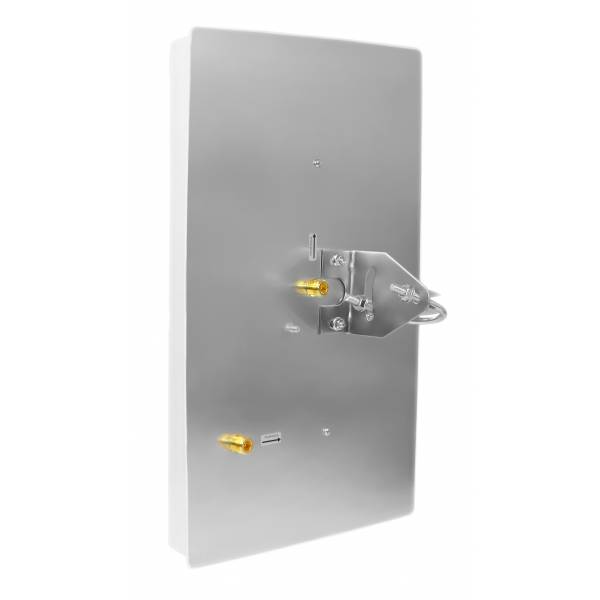

Before installing on an end user site, I tested it against a pair of Iskra P-58's side by side aimed at a distant mast operating on multiple bands. This antenna performed just as well as the Iskra's on the low 800 and 900MHz bands with the signal readings within 1dB apart and similar speed tests. On the upper 1800 and 2100MHz bands, the RSRP readings were over 10dB weaker than the Iskra's readings and delivered about half the download speed on speed tests. The antenna is physically big, larger than two A4 sheets side by side, but very light. It has a single mounting clamp that allows for vertical or horizontal mounting, which can also tilt up and down, It just requires a small wall mount, whereas the Iskra's requires a long pole to mount its separate antennas. It requires a 10mm spanner to fasten the mounting clamp to the antenna and a 13mm spanner to fasten its clamp to a pole.
Verificada, recopilada por GETIC SIA
