Nombre del producto

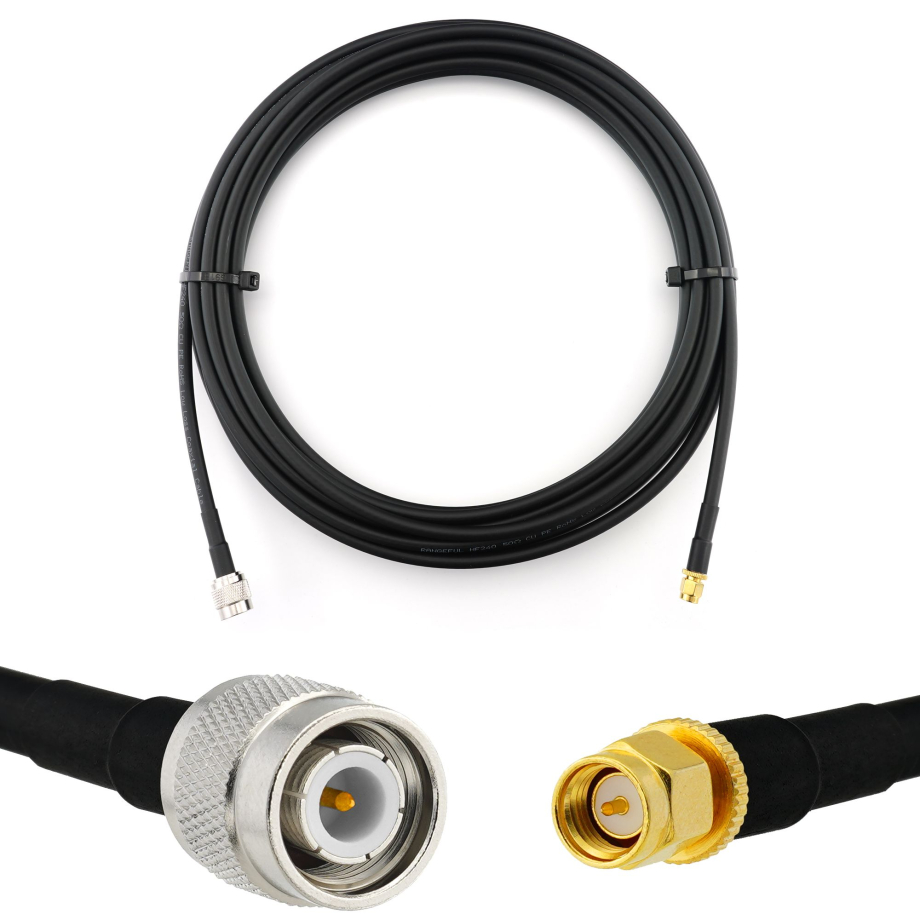

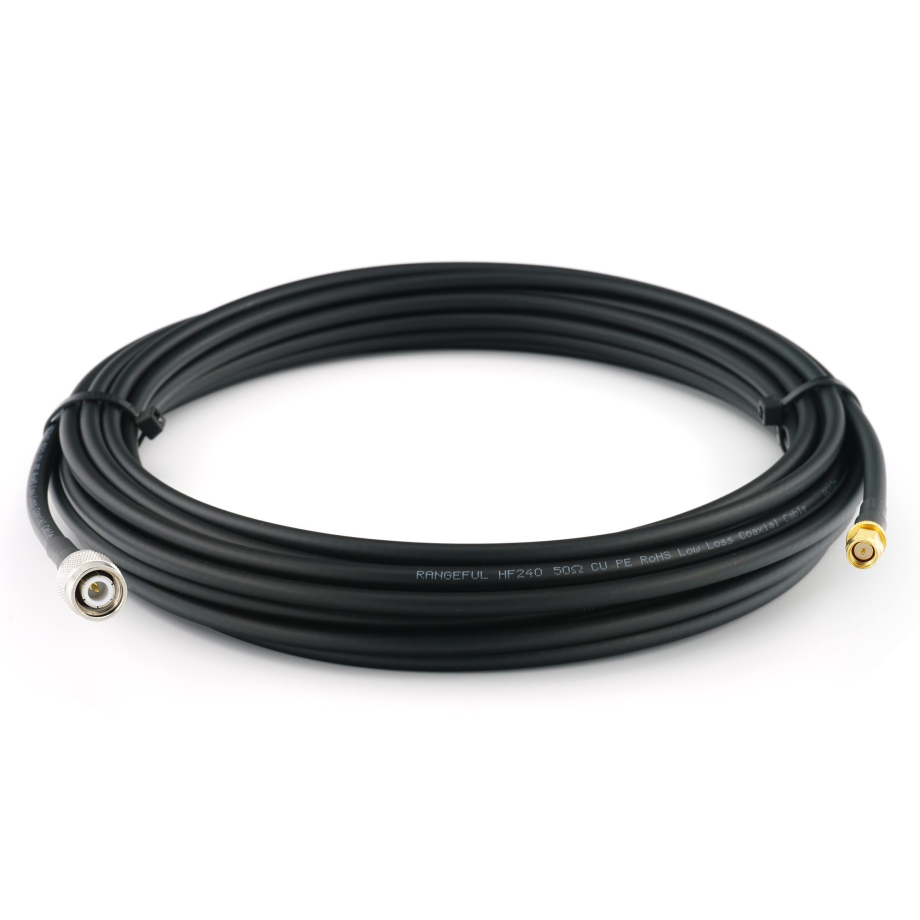

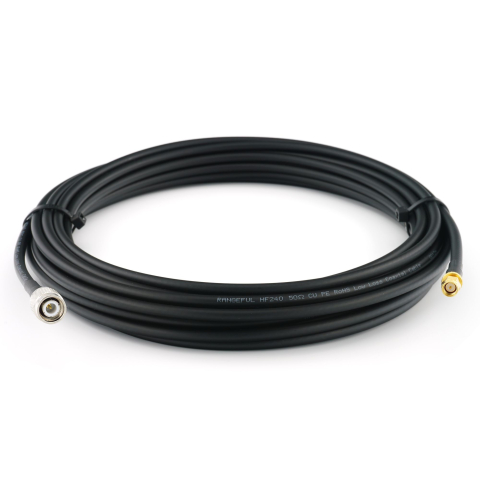

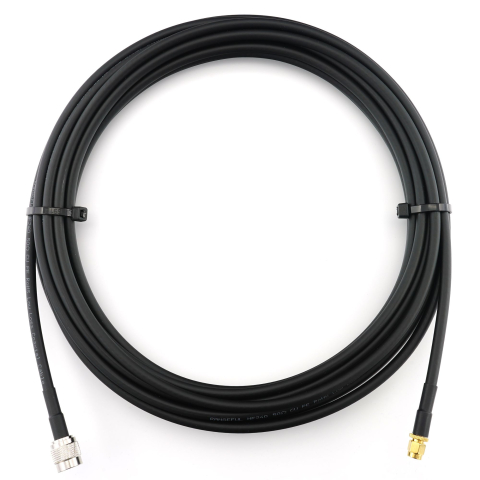

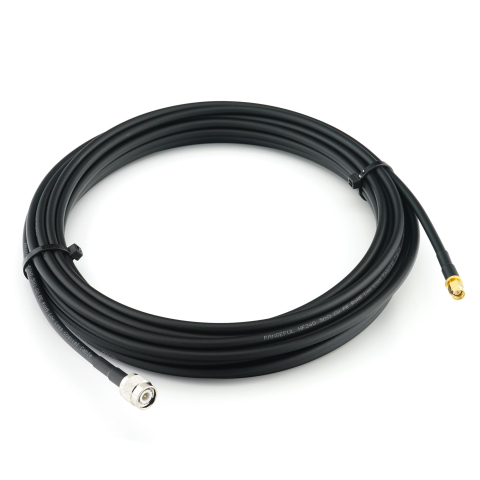

TNC macho a SMA macho 20m cable coaxial — HF240 (equivalente a LMR240)
Garantía
?
24 meses
Número de pieza del fabricante
HF240-TNCM-SM-20
TNC macho a SMA macho 20m cable coaxial —
HF240 (equivalente a LMR240)
En stock
?
36.32 €
36.32 €
Descripción detallada
Especificaciones técnicas
Especificación
Cable y Conector
Tipo de cable
LMR240
Conector
TNC Male - SMA Male
Longitud de cable
Conductor
Cobre puro
Diámetro del conductor
Ø 1,40 mm
Dieléctrico
PEG
Diámetro del dieléctrico
Ø 3,80 ± 0,10 mm
Blindaje
Papel de aluminio
Dimensiones del blindaje
Ø 3,90 ± 0,10 mm
Cobertura del blindaje
100 %
Trenza
Cobre estañado
Dimensiones de la trenza
Ø 4,30 ± 0,10 mm
Cobertura de la trenza
77 %
Cubierta
PVC no contaminante
Diámetro de la cubierta
Ø 6,10 ± 0,10 mm mm
Parámetros Físicos
Color
Negro
Dimensiones
31 x 31 x 8 cm
Peso
3.16 kg
Temperatura de funcionamiento
-30 °C a 70 °C
Medio ambiente
Interior, Exterior
El Paquete Contiene
Unidades
1 piezas
