Nombre del producto
Teltonika Fuente de Alimentación de Carril DIN 12V 20W 1.67A
Garantía
?
24 meses
Número de pieza del fabricante
PR3PDNP0
EAN
0708747439823

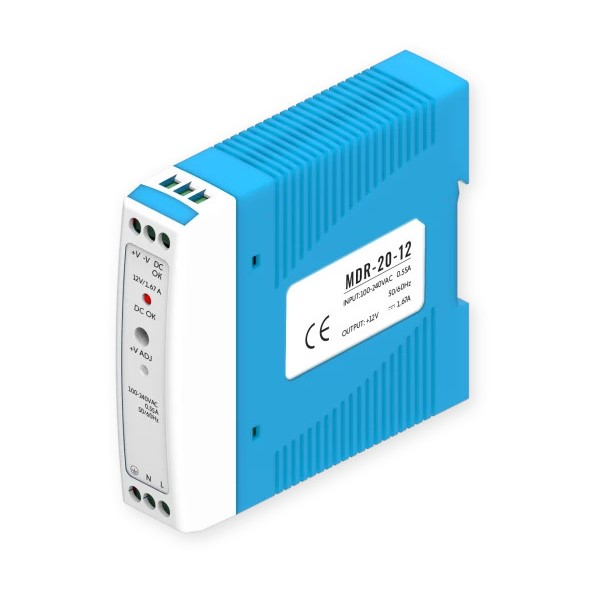

Fuente de alimentación Teltonika MDR-20-12 para carril DIN 12V 20W
Official Teltonika Distributor
Certified Teltonika Engineers
En stock
?
24.59 €
24.59 €
Official Teltonika Distributor
Certified Teltonika Engineers
Descripción detallada
El PR3PDNP0 es una fuente de alimentación para carril DIN destinada a los routers Teltonika. Lista de dispositivos compatibles: RUT200, RUT241, RUT901, RUT951, RUT956, TCR100, RUT300, RUT360, RUTX08, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14, RUTX50, RUTXR1, TRB140, TRB141, TRB142, TRB143, TRB145, TRB245, TRB255, TRB500, TSW010, TSW304.
Características:
- Protección contra sobrecargas: corte de la salida entre el 105 % y el 160 %, recuperación automática
- Corriente de arranque: corriente de arranque en frío 20 A/115 VCA; 40 A/230 VCA
- Protección contra sobretensión: 120 % ~ 140 %; corte de la tensión de salida; se requiere un ciclo de encendido/apagado para la recuperación
- Tiempo de establecimiento, subida y mantenimiento: 500 ms; 30 ms/230 VCA a plena carga; 1000 ms; 30 ms/115 VCA a plena carga
- Tensión de resistencia: E/S-S/S: 1,5 kV; E/S-FG: 1,5 kV; S/S-FG: 0,5 kV durante 1 minuto
- Resistencia de aislamiento: E/S-S/S, E/S-FG, S/S-FG: 500 VCC/1000 MΩ
Especificaciones técnicas
