Número de pieza del fabricante
HF240T-SM-SF-12
Garantía
?
24 meses
EAN
4752284001520

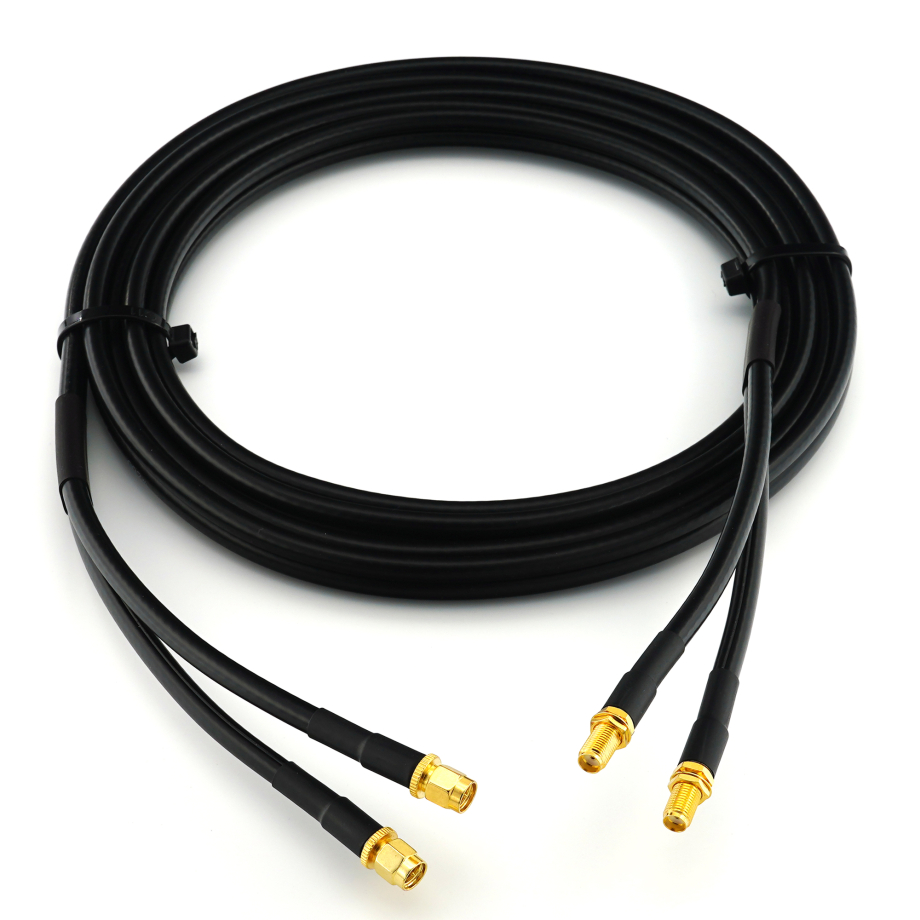

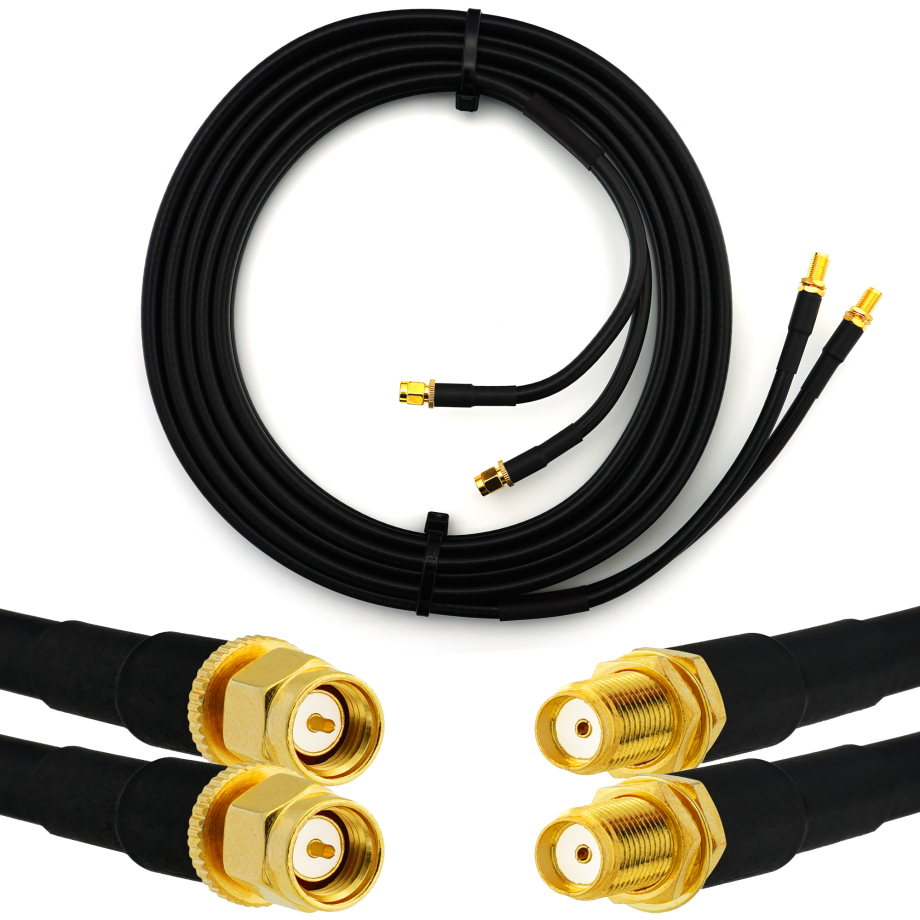

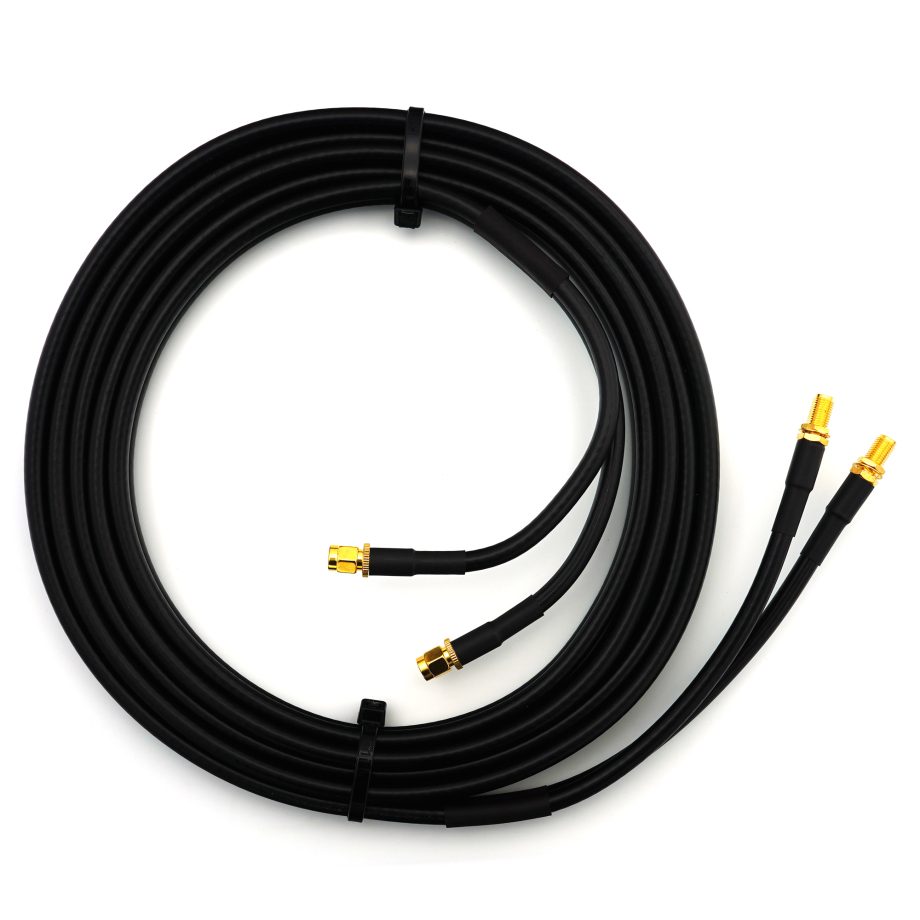

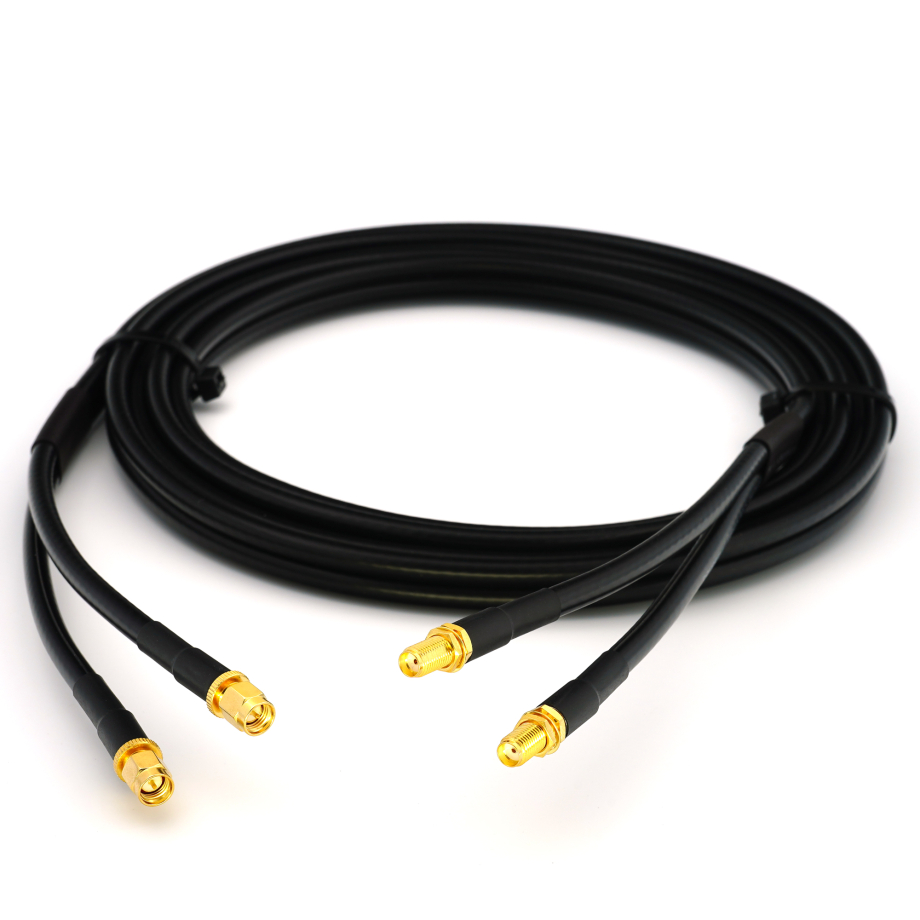

SMA macho a SMA hembra 12m cable coaxial doble — HF240 (equivalente a LMR240)
en stock
?
51.65 €
51.65 €
Especificación
Cable y Conector
Conector
(2) SMA Male - (2) SMA Female
Tipo de cable
LMR240 Twin
Longitud de cable
12 m
Conductor
Cobre puro
Diámetro del conductor
Ø 1,40 mm
Dieléctrico
PEG
Diámetro del dieléctrico
Ø 3,80 ± 0,10 mm
Blindaje
Papel de aluminio
Dimensiones del blindaje
Ø 3,90 ± 0,10 mm
Cobertura del blindaje
100 %
Trenza
Cobre estañado
Dimensiones de la trenza
Ø 4,30 ± 0,10 mm
Cobertura de la trenza
77 %
Cubierta
PVC
Diámetro de la cubierta
Ø 6,10 ± 0,10 mm mm
Parámetros Físicos
Color
Negro
Dimensiones
19 x 19 x 5 cm
Temperatura de funcionamiento
-30 °C a 70 °C
Medio ambiente
Interior, Exterior
El Paquete Contiene
Unidades
1 piezas
