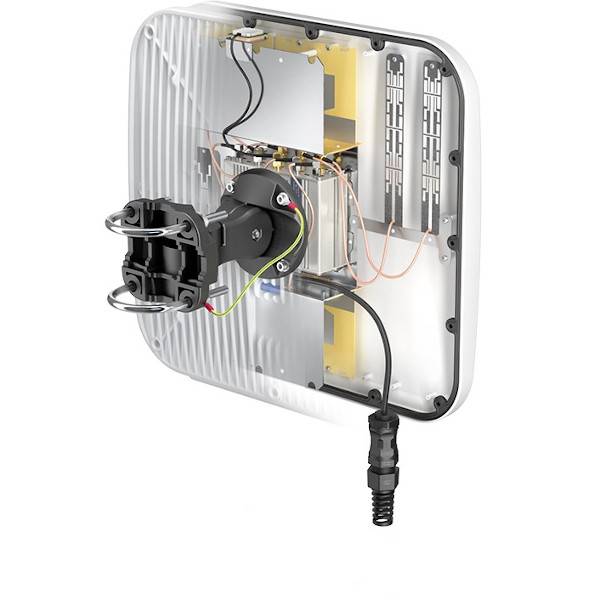

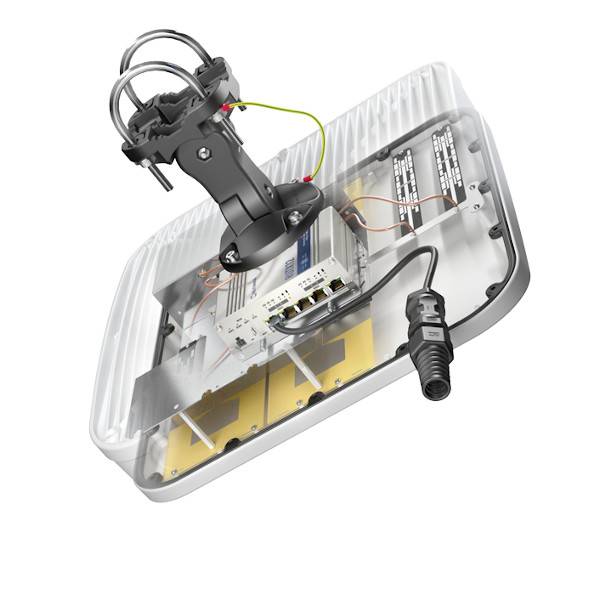

QuMax para RUTX12/X14

en stock
?
155.26
en stock
?
155.26

Número de pieza del fabricante

AX12M

Garantía

?
24 meses

EAN

5907772035443

Categoría

Especificación

Antena

Diseño de Antena

Panel
Rango de Frecuencia y Ganancia de la Antena Inalámbrica

2.40 - 2.50 (GHz) 6 (dBi), 4.70 - 6.00 (GHz) 7 (dBi)
Rango de Frecuencia y Ganancia de la Antena Móvil

0.694 - 0.960 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.2 - 2.7 (GHz) 6 (dBi)
Ganancia de Antena Móvil

4 dBi, 5 dBi, 6 dBi
Ancho de haz

90 ° Vertical, 90 ° Horizontal
Polarización

Vertical
VSWR

< 2
Impedancia

50 Ω

Parámetros Físicos

Color

Blanco
Material

Aluminio, Plástico ABS, Fibra de vidrio, Politetrafluoroetileno
Código de protección de ingreso

IP67
Dimensiones

392 x 392 x 99 mm
Peso

3.7 kg
Temperatura de funcionamiento

-40 °C a 75 °C
Medio ambiente

Exterior
Método de montaje

Opiniones y valoraciones

4
/ 5
reseña de 1
reseña de 1
Piotr Steininger,2023.05.12
This is definitely a quality product. The Plastic isn't cheap, and has no leftover edges from the injection molding process. It has all the antennas that RUTX12/RUTX14 needs. However the space for the router is very tight and some of the attachments cover up ports on either side. i was not able to power the router via PoE. The provided pass-through has some problems accepting a patch cable. So it must be hooked up with an installation cable (cat7) and crimped after part of the gland is slipped onto the cable. There was notable gain in the signal strength, as well as quality and SINR. However, this did not translate to a significant gain in DL or UL speeds. I tested it against the included stubbies and 4 directional antennas, with rather long cables (which result in some signal loss). The directional antennas outperformed this one in upload speed, which is the most critical component for me. I think that in a less rural area, without forrest all around, this product would definitely be very useful.
Verificada, recopilada por GETIC SIA
