Número de pieza del fabricante
HF240-BNCM-BNCF-0.5
Garantía
?
24 meses
EAN
4752284000226

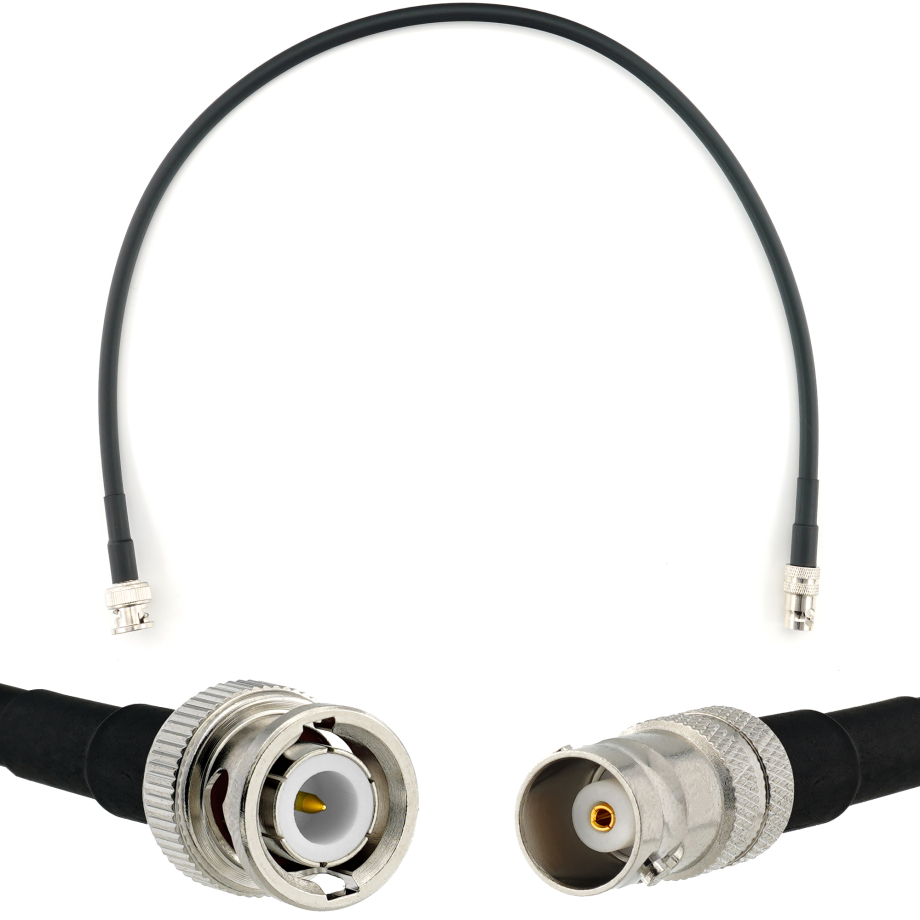

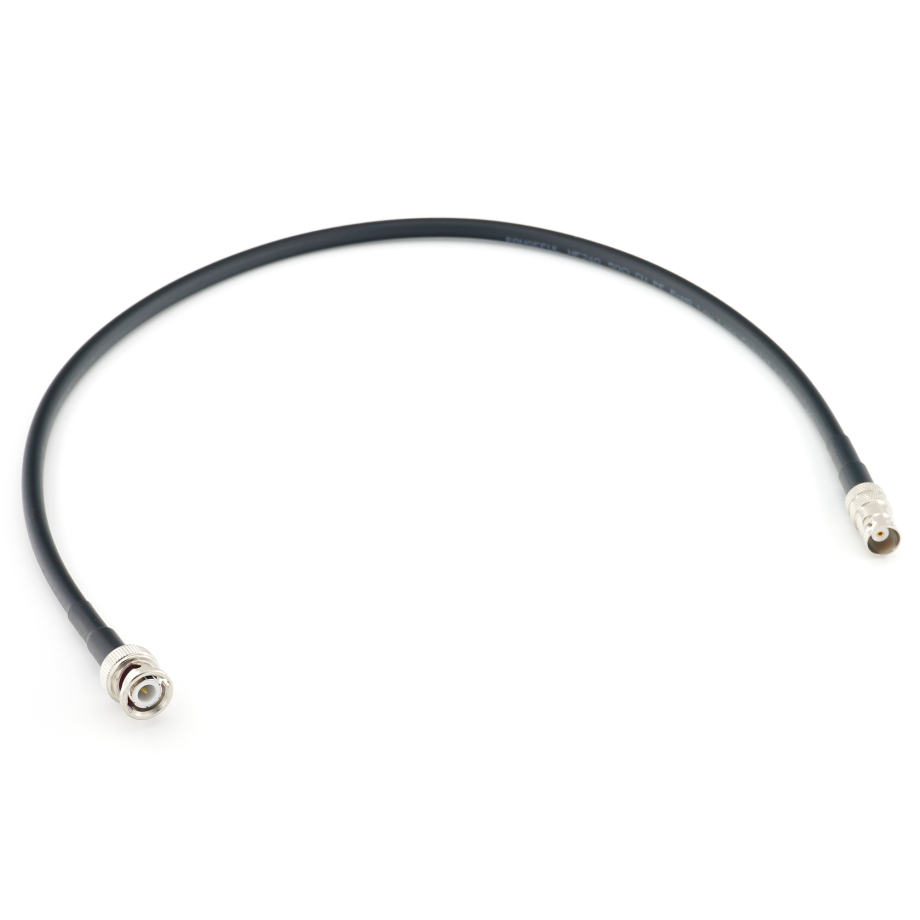

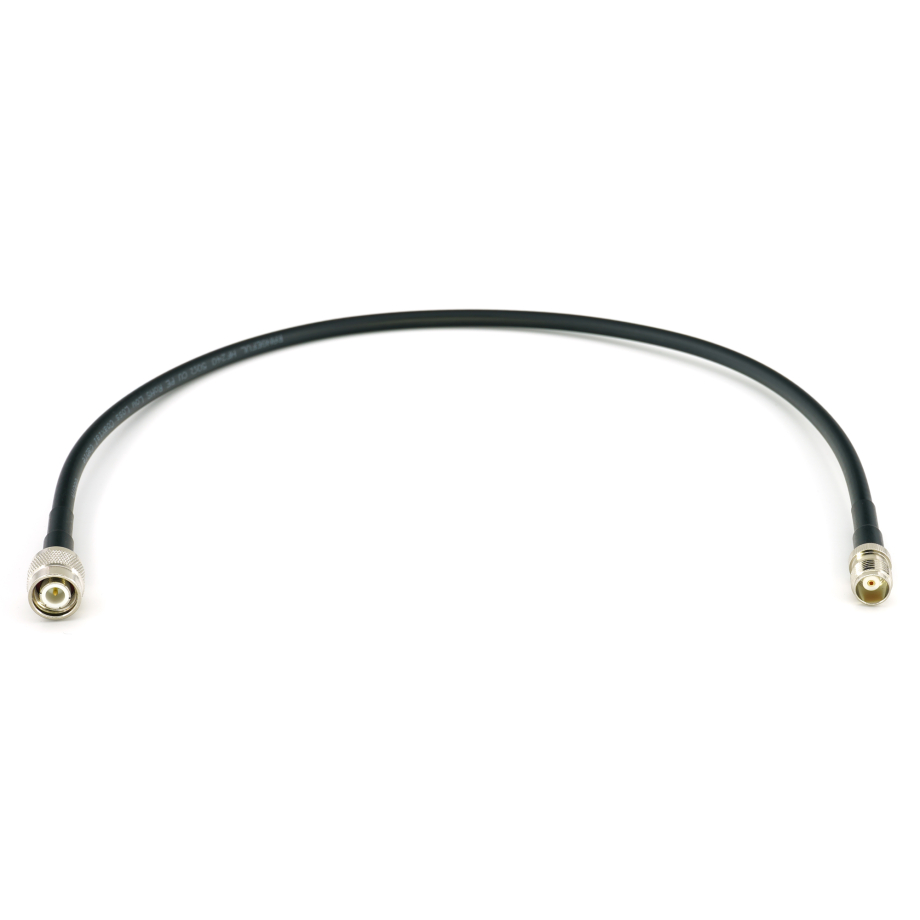

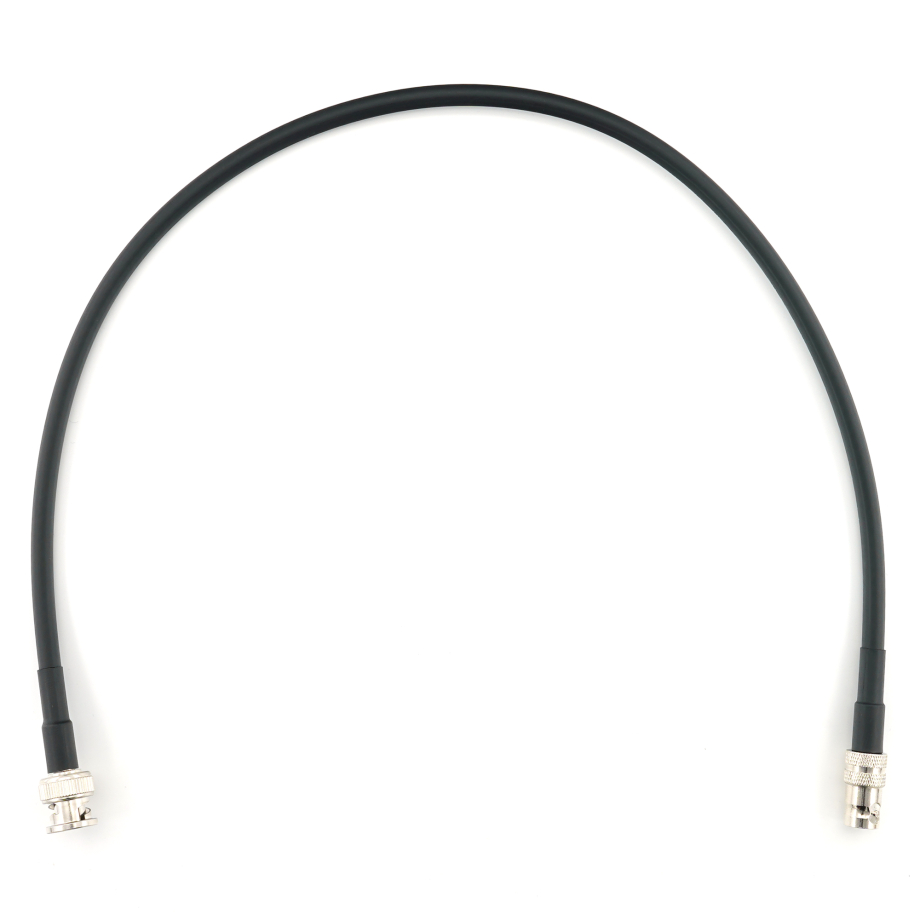

BNC macho a BNC hembra 50cm cable coaxial — HF240 (equivalente a LMR240)
en stock
?
12.14 €
12.14 €
Descripción detallada
Especificaciones técnicas
Especificación
Cable y Conector
Tipo de cable
LMR240
Conector
BNC Male - BNC Female
Longitud de cable
Conductor
Cobre puro
Diámetro del conductor
Ø 1,40 mm
Dieléctrico
PEG
Diámetro del dieléctrico
Ø 3,80 ± 0,10 mm
Blindaje
Papel de aluminio
Dimensiones del blindaje
Ø 3,90 ± 0,10 mm
Cobertura del blindaje
100 %
Trenza
Cobre estañado
Dimensiones de la trenza
Ø 4,30 ± 0,10 mm
Cobertura de la trenza
77 %
Cubierta
PVC no contaminante
Diámetro de la cubierta
Ø 6,10 ± 0,10 mm mm
Parámetros Físicos
Color
Negro
Dimensiones
15 x 15 x 2 cm
Peso
0.1 kg
Temperatura de funcionamiento
-30 °C a 70 °C
Medio ambiente
Interior, Exterior
El Paquete Contiene
Unidades
1 piezas
