Marca
Número de pieza del fabricante
HG3-CC-A60-V2
Garantía
?
24 meses
EAN
0708747440423

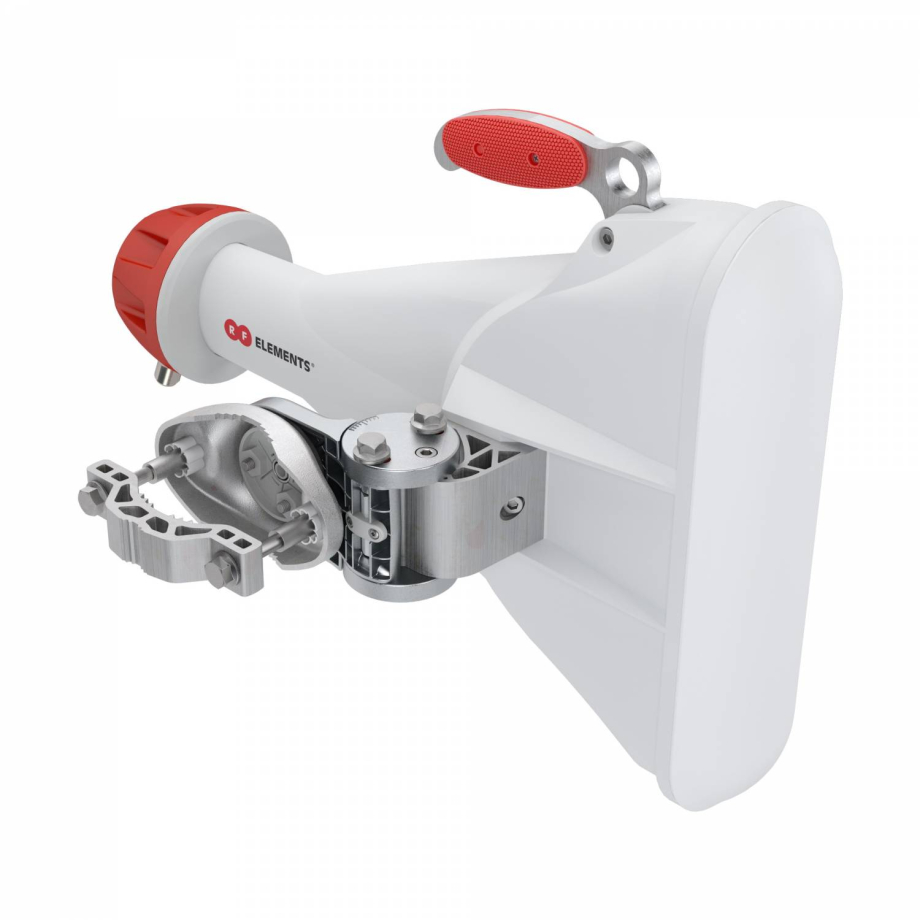

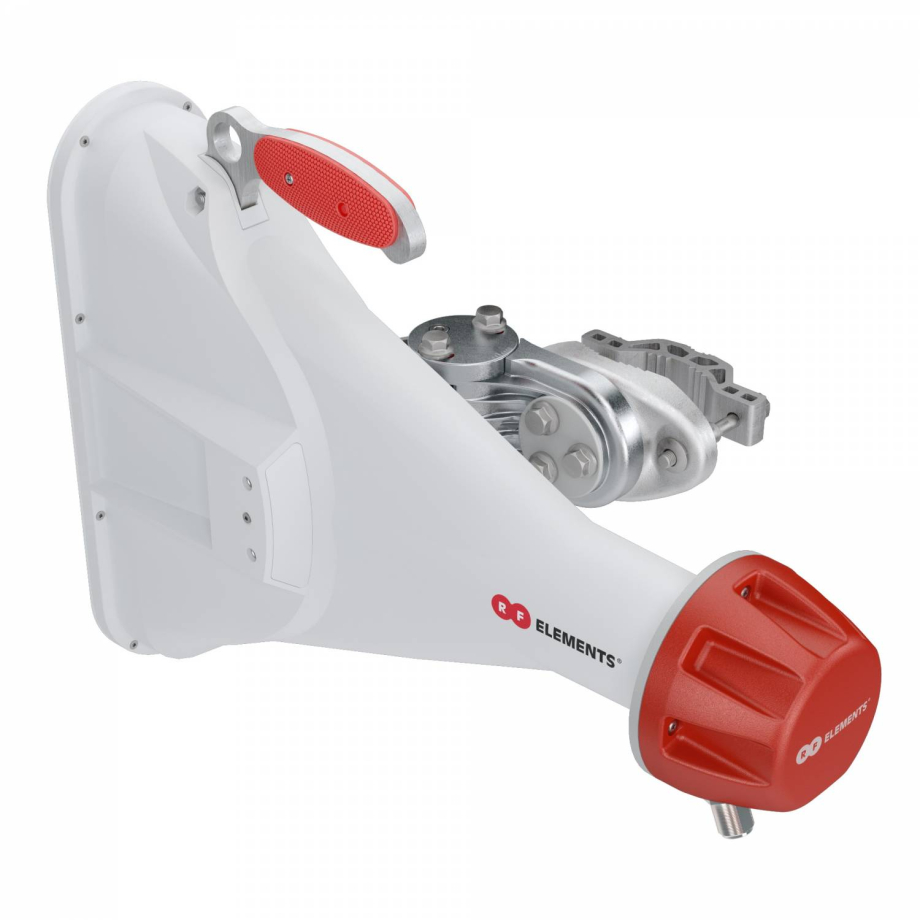

Asymmetrical Beam Antenna 60° with N-Female Connectors
nuevo producto
nuevo producto
nuevo producto
fuera de stock
?
415.97 €
415.97 €
Alternativas disponibles
Descripción detallada
Especificaciones técnicas
Especificación
Antena
Diseño de Antena
Cuerno
Rango de Frecuencia y Ganancia de la Antena Inalámbrica
5.18 - 6.0 (GHz) 17 (dBi)
Ancho de haz
60 ° Vertical, 60 ° Horizontal
Polarización
Lineal Doble
VSWR
< 1.8
Impedancia
50 Ω
Relación F/B
> 27 dB
Conector
Conectores de RF
(2) N Female
Parámetros Físicos
Código de protección de ingreso
IP55
Dimensiones
515 × 370 × 140 mm
Peso
5.1 kg
Temperatura de funcionamiento
-35 °C a 60 °C
Medio ambiente
Exterior
Velocidad nominal del viento
160 km/h
