Nombre del producto

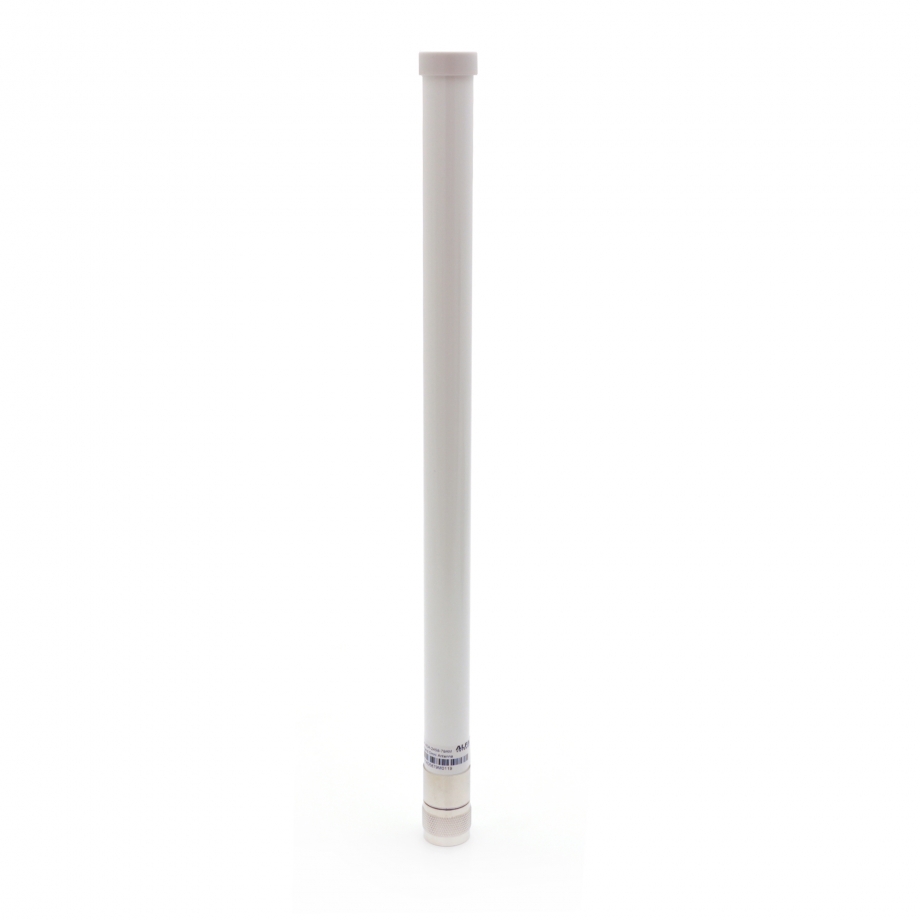

Alfa 2.4/5GHz Omni Antena Exterior 7/9dBi N-Male
Garantía
?
24 meses
Número de pieza del fabricante
AOA-2458-79AM
EAN
4718050306985
Alfa 2.4/5GHz Omni Antena Exterior 7/9dBi N-Male
fuera de stock
?
20.19 €
20.19 €
Alternativas disponibles
Descripción detallada
Especificaciones técnicas
Productos compatibles
Especificación
Red Inalámbrica
Frecuencia
2.4GHz, 5GHz
Antena
Diseño de Antena
Omni
Rango de Frecuencia y Ganancia de la Antena Inalámbrica
2.4 - 2.5 (GHz) 7 (dBi), 5.15 - 5.875 (GHz) 9 (dBi)
Ancho de haz
360 ° Vertical
Polarización
Lineal, Vertical
VSWR
< 2.0
Impedancia
50 Ω
Conector
Conectores de RF

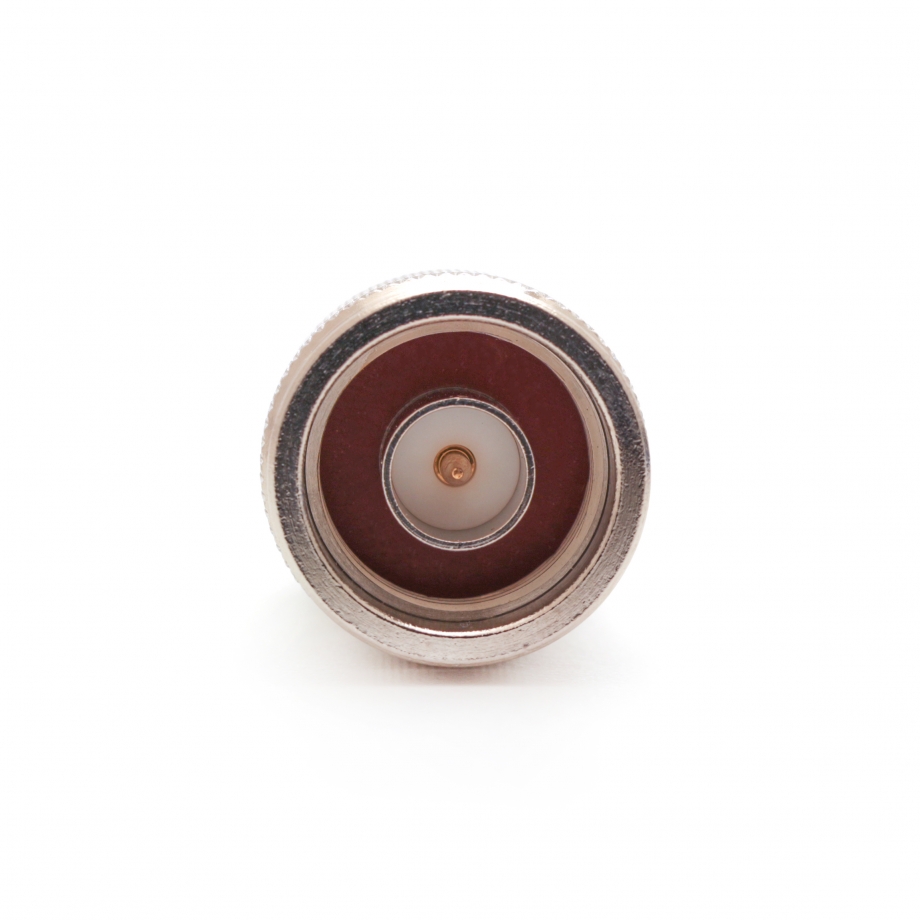

(1) N Male
Parámetros Físicos
Color
Blanco
Material
Fibra de vidrio
Dimensiones
Ø22 x 322 mm
Temperatura de funcionamiento
-40 °C a 85 °C
Medio ambiente
Exterior
