Nombre del producto

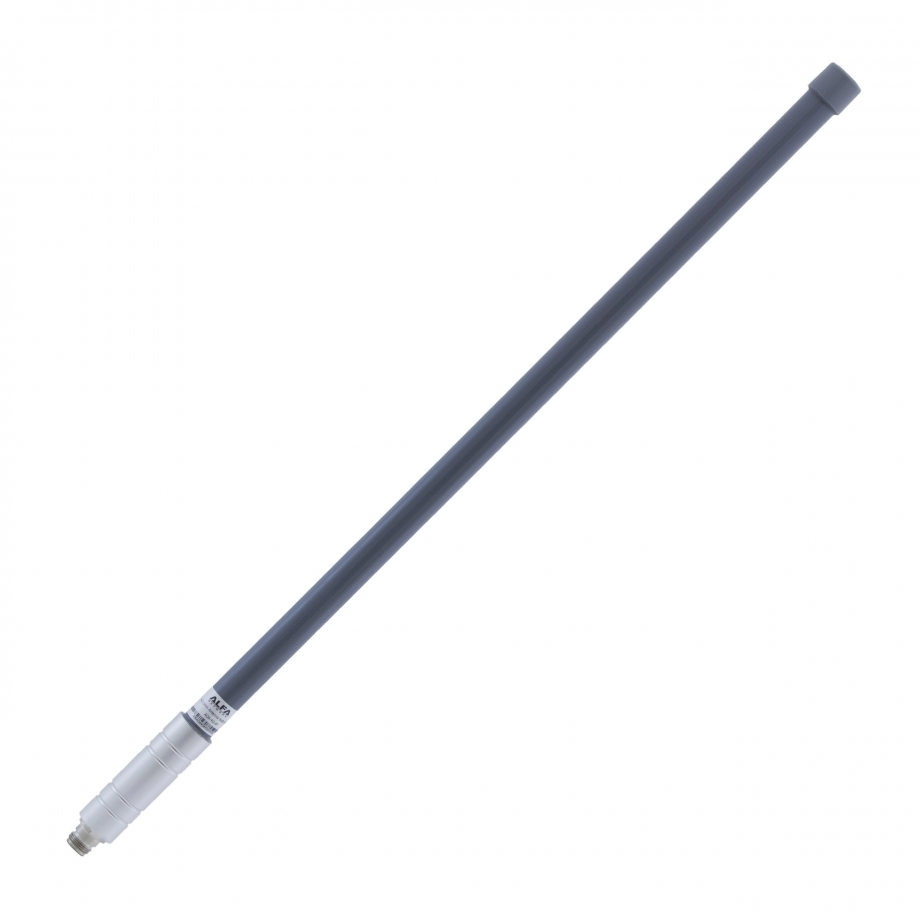

Antena exterior 4G LTE 8dBi IP67 N-Female
Garantía
?
24 meses
Número de pieza del fabricante
AOA-4G-8F
EAN
4718050305568
Antena exterior 4G LTE ALFA Network 8 dBi IP67 N hembra
En stock
?
34.59 €
34.59 €
Productos compatibles
Especificación
Red Móvil
Generación de redes móviles
Antena
Diseño de Antena
Omni
Rango de Frecuencia y Ganancia de la Antena Móvil
0.698 - 0.960 (GHz) 6 (dBi), 1.710 - 2.700 (GHz) 8 (dBi)
Ganancia de Antena Móvil
6 dBi, 8 dBi

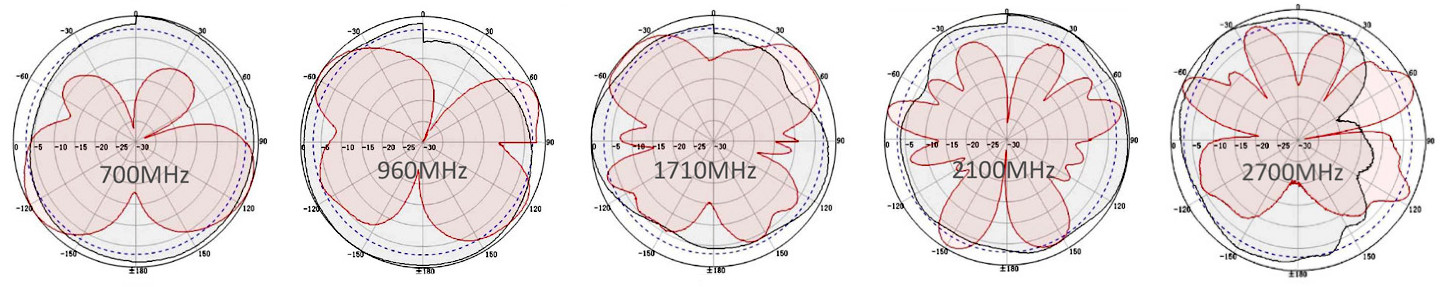

Ancho de haz
18 ° Vertical, 360 ° Horizontal
Polarización
Vertical
VSWR
< 1.5
Impedancia
50 Ω
Potencia de Entrada Máxima
100 W
Conector
Conectores de RF
(1) N Male
Parámetros Físicos
Color
Gris
Material
Fibra de vidrio
Código de protección de ingreso
IP67
Dimensiones
Ø20 x 600 mm
Peso
0.65 kg
Temperatura de funcionamiento
-40 °C a 70 °C
Medio ambiente
Exterior
Método de montaje
Velocidad nominal del viento
60 m/s
